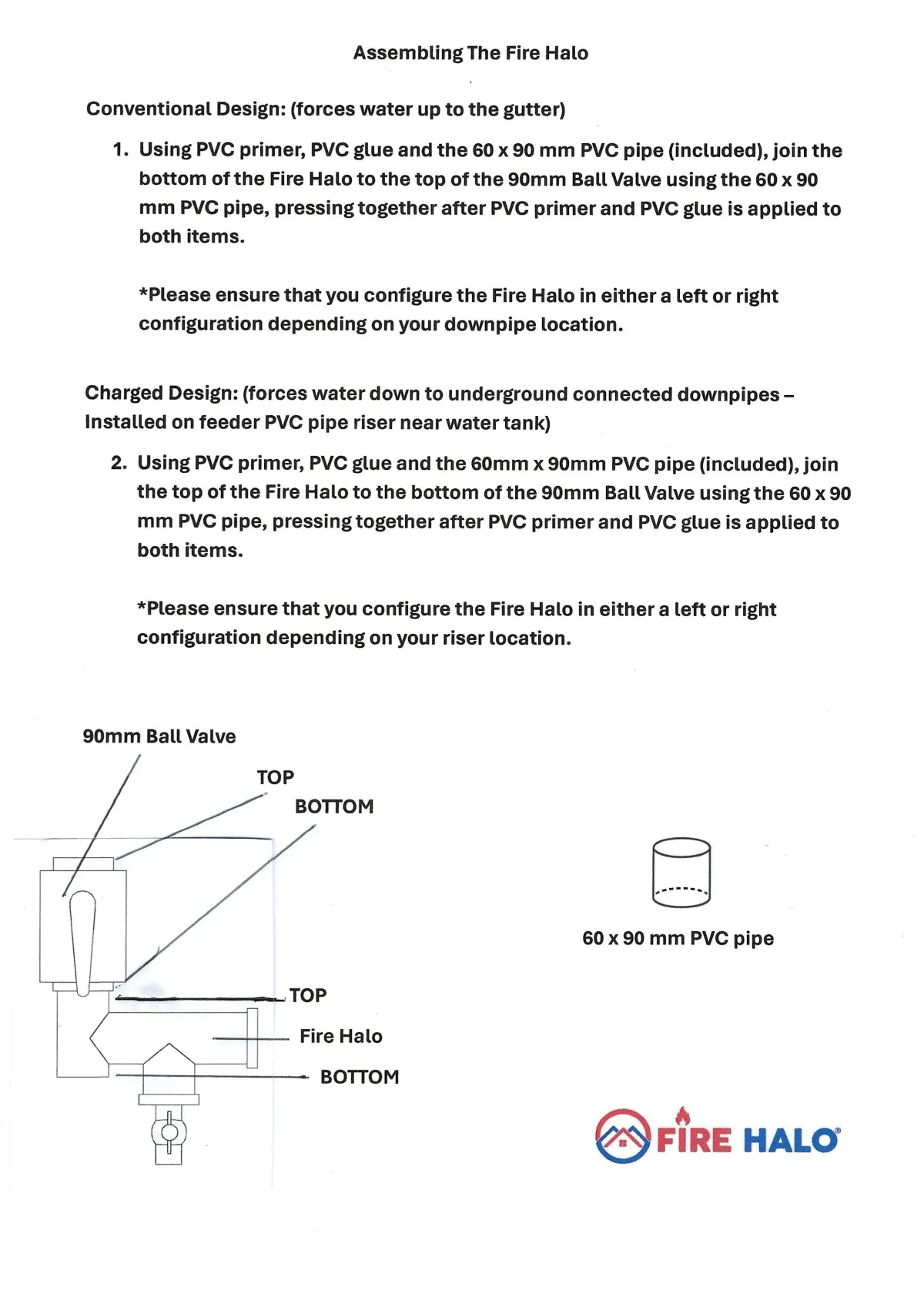

Assembly Guide
<Click to enlarge>

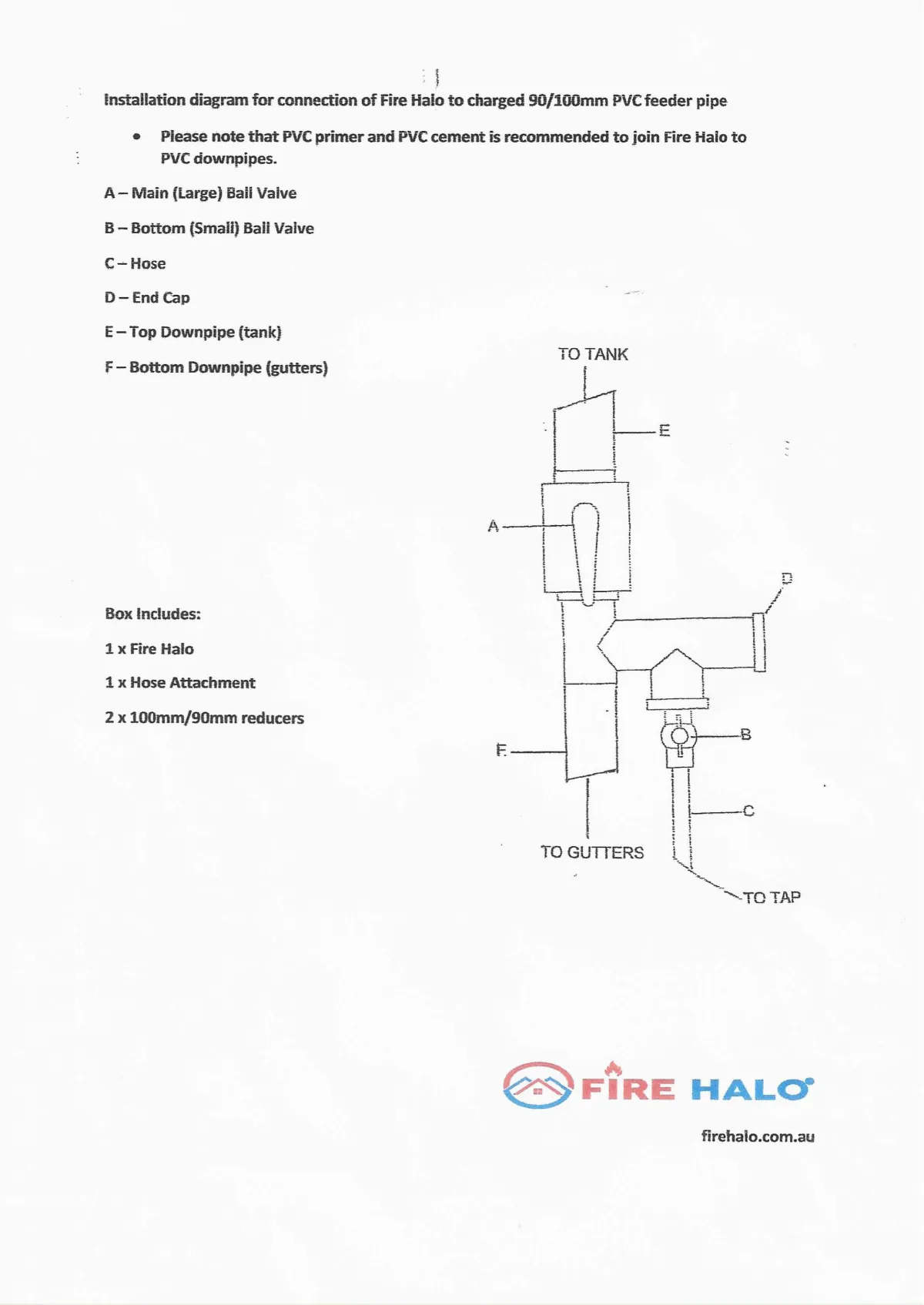

Installation Guide
Recommended to install at chest height, approx. 1 meter off the ground.
<Click to enlarge>

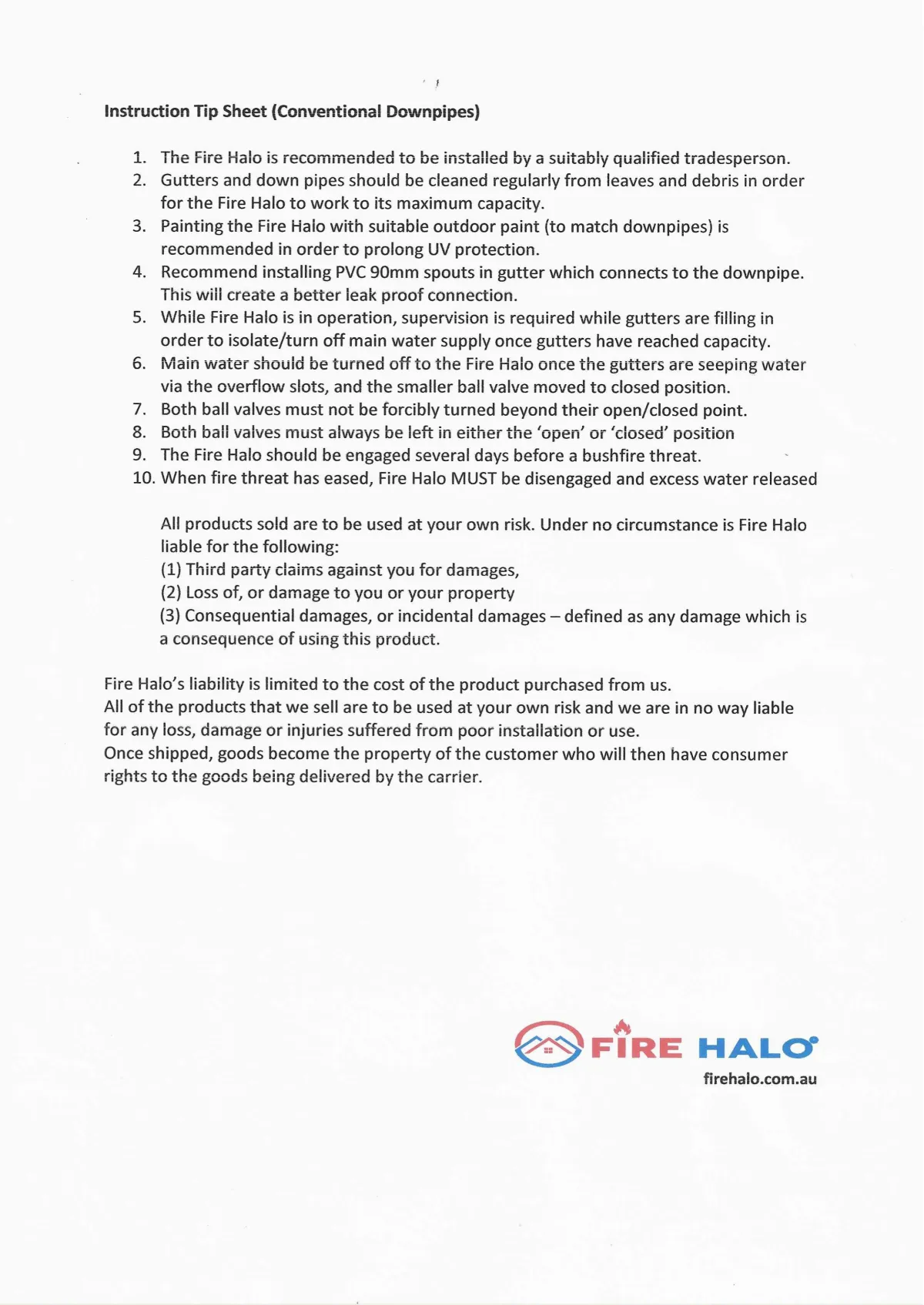

Tip Sheet
<Click to enlarge>

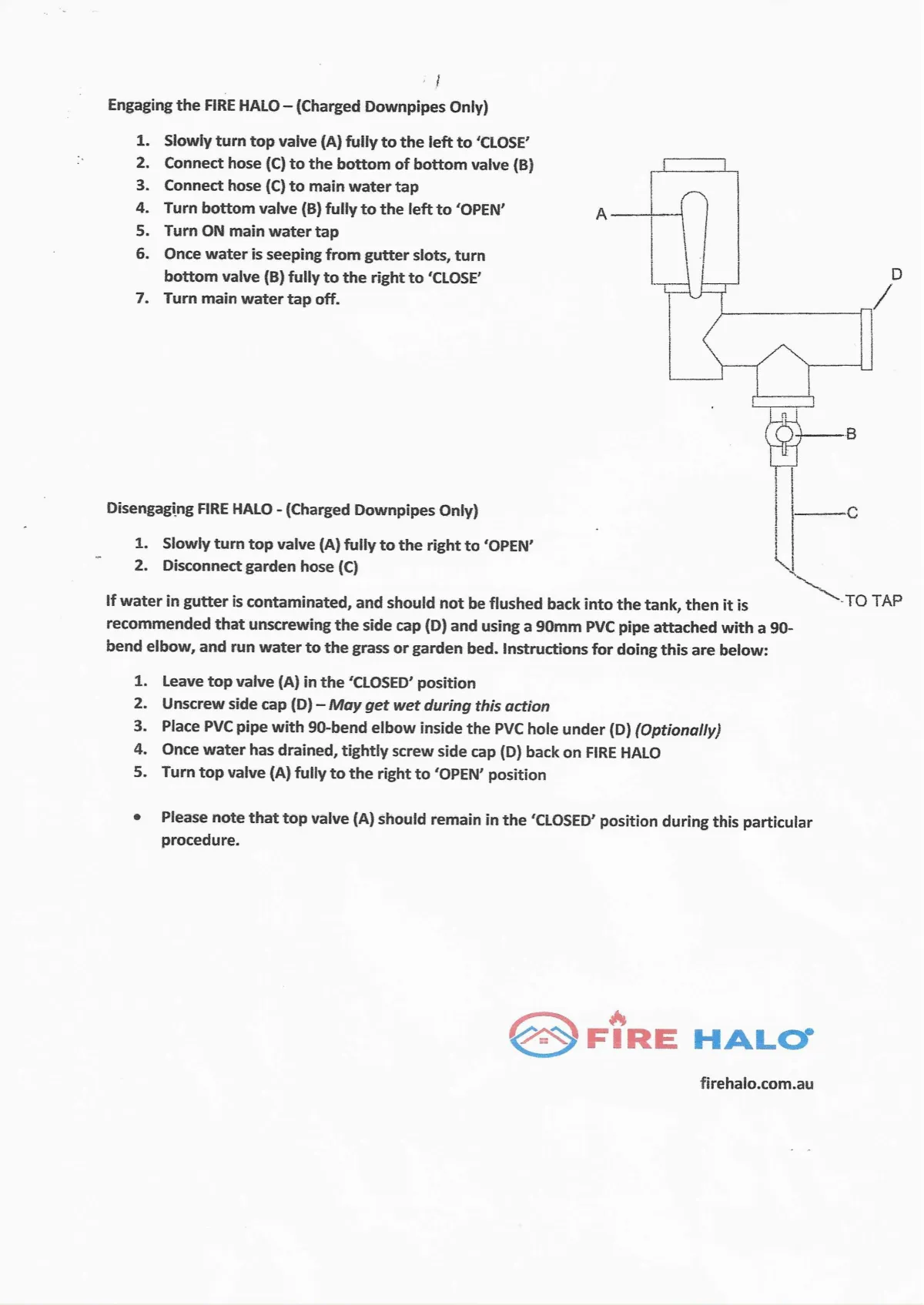

Operating Instructions
<Click to enlarge>

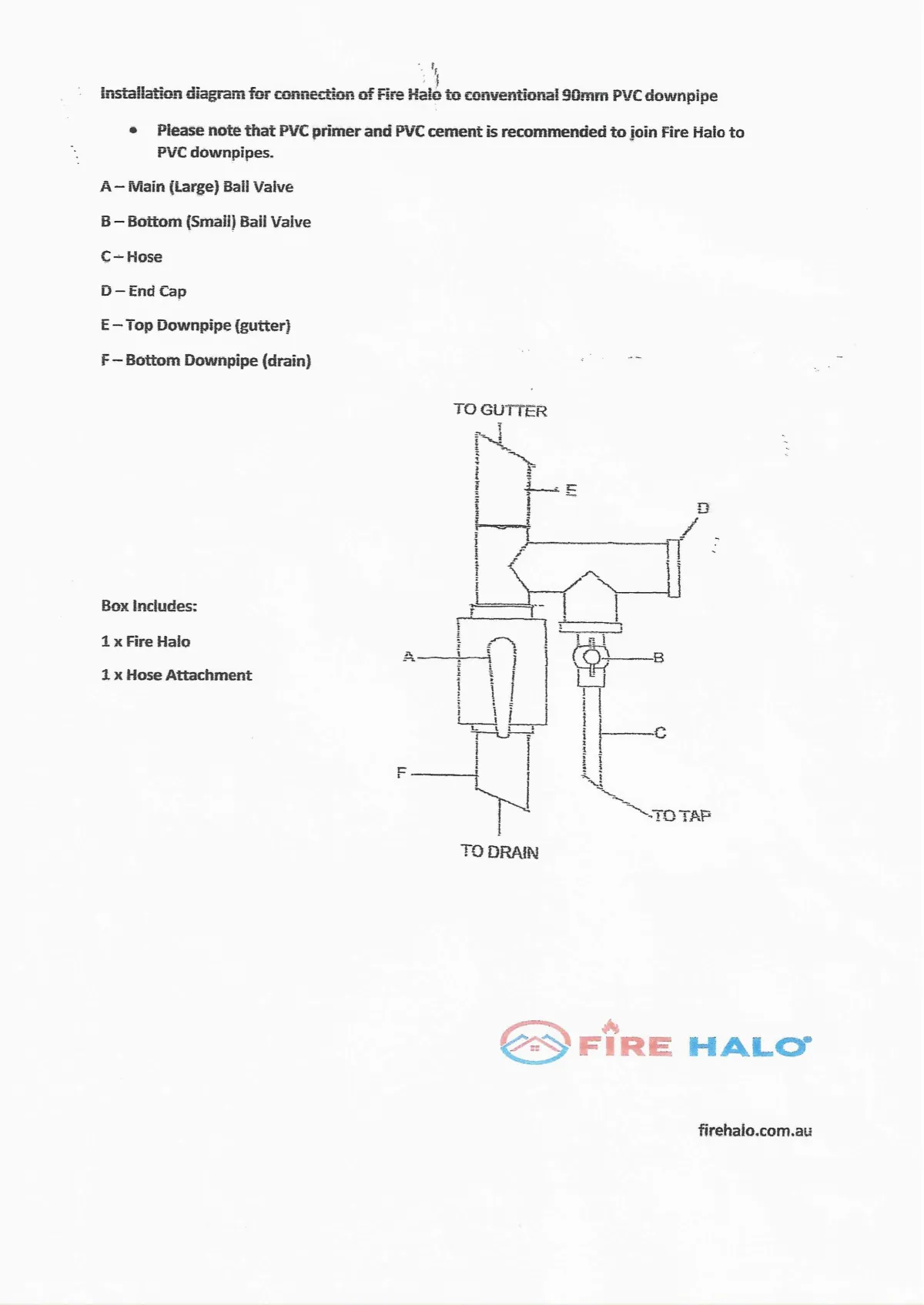

Installation
<Click to enlarge>

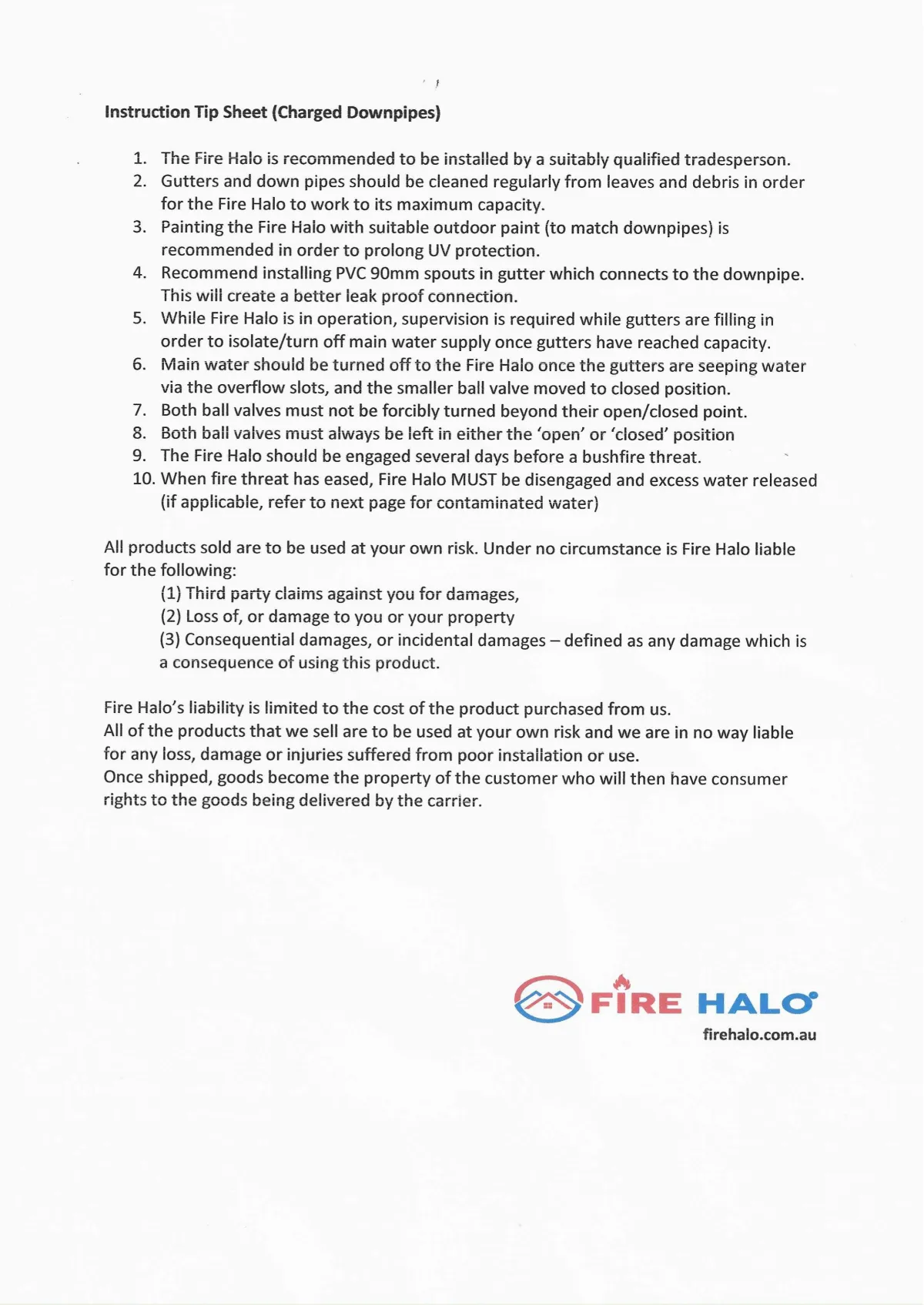

Tip Sheet
<Click to enlarge>

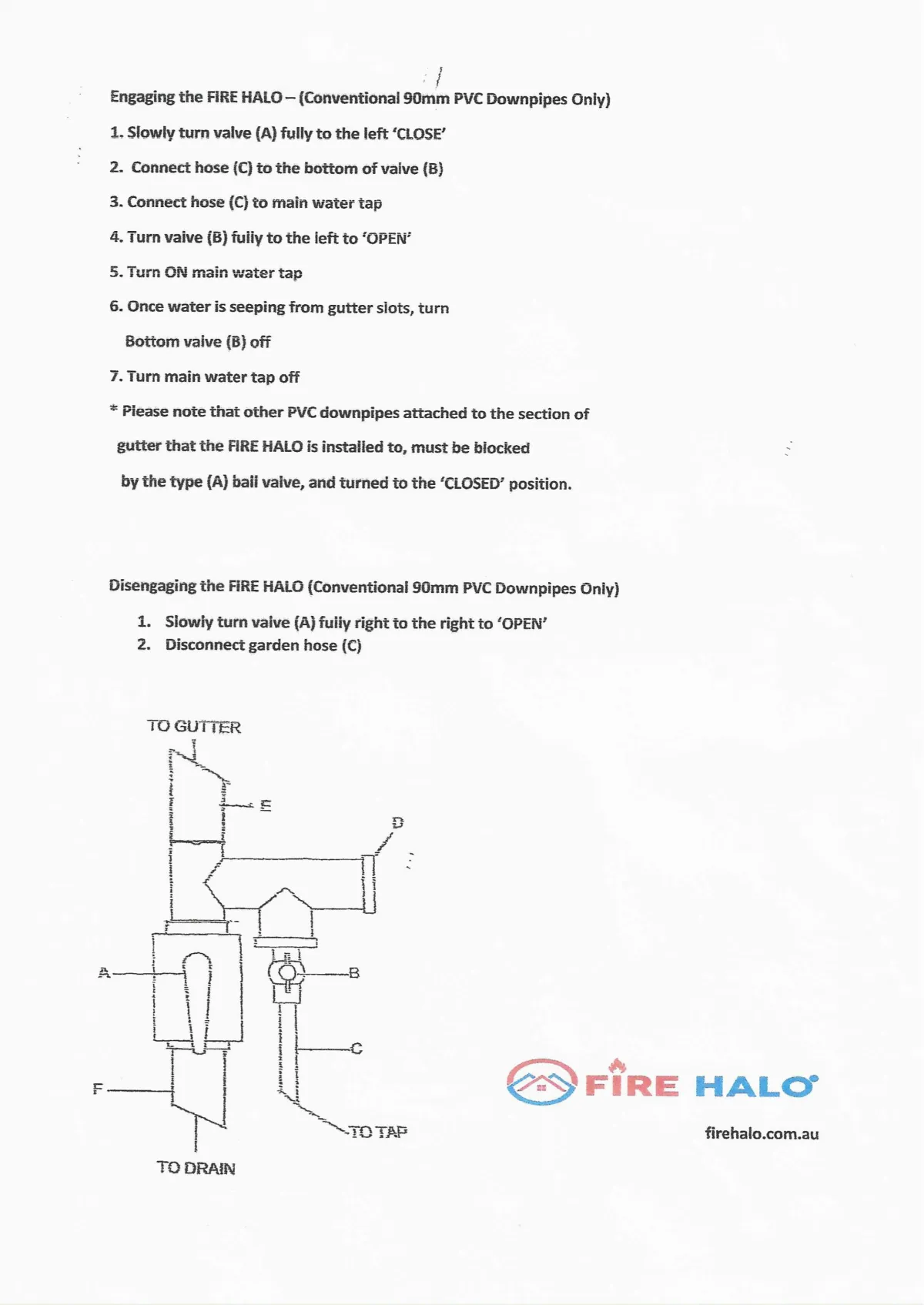

Operating Instructions
<Click to enlarge>
How to make a watertight seal
If you do not wish to install the Fire Halo™ yourself, we strongly recommend you engage in a licensed plumber or roofer to complete the task. Please check our preferred installers on our website to see if you fall into their designated areas. Also consider signing up as one and we may refer business to you!
When connecting the 90mm PVC downpipe to your gutter, you must ensure that it has a watertight connection.
We recommended installing the 90mm PVC gutter spouts that are often found in stores like Bunnings or you can seal the connection with a clear or roof silicon.
If you have 90mm conventional downpipes on your house then you only require installing a Fire Halo™ on one of the downpipes per gutter.
The remaining downpipes attached to that gutter only require installing the 90mm Ball Valve. Simply cut the downpipe in place with a PVC pipe saw or circular saw, install the Fire Halo™ and seal with a clear or roof silicon.
If you have metal conventional downpipes then you must convert these to 90mm PVC for the Fire Halo™ to work as intended.
This only requires converting from the gutter to the top of the Fire Halo. Any metal downpipe below the Fire Halo™ can remain in its current place to continue to serve as a rainwater dispenser.
If there are multiple metal conventional downpipes attached to the one gutter then then the remaining downpipes only require the 90mm Ball Valve and not the Fire Halo™ itself. Again, these other downpipes must have a 90mm PVC pipe connected from the gutter to the top of the 90mm Ball Valve. The metal downpipe can still remain in its current place below the 90mm Ball Valve. At least one downpipe from the gutter must have the Fire Halo installed to flood the gutter.
Yes, Infact not only would the Fire Halo work as a secondary protection against ember attacks, but also works well as a first flush system for houses fitted with leaf/gutter guard.
5 Year manufacturer's replacement warranty. T&C's apply.
